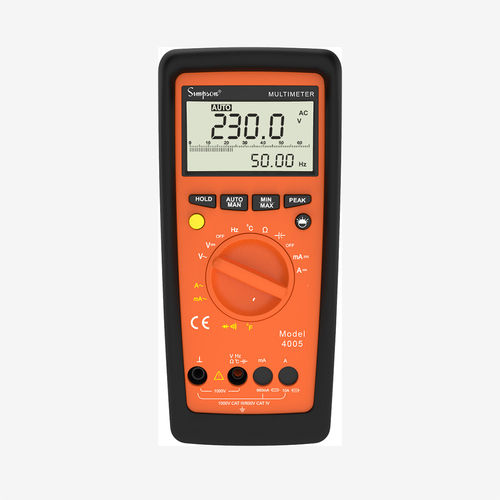

Digital multimeter 4005 / 4006 Series
portable1000 V10 A

Digital multimeter - 4005 / 4006 Series - Simpson - portable / 1000 V / 10 A
Digital multimeter - 4005 / 4006 Series - Simpson - portable / 1000 V / 10 A
Digital multimeter - 4005 / 4006 Series - Simpson - portable / 1000 V / 10 A - image - 2
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
10 A
Safety rating
cat III, cat IV
Additional features
frequency
Protection level
rugged, IP20, IP50
Applications
industrial, for training
Max DC voltage

1,000 V

Max AC voltage

1,000 V

Max DC current

10 A

Max AC current

10 A

Max resistance measure

Min.: 0 Ohm

Max.: 60,000,000 Ohm

Max capacity measure

Min.: 0 nF

Max.: 0 nF

Max frequency measure

Min.: 10 Hz

Max.: 10,000,000 Hz

Length

174 mm
(6.85 in)

Width

79 mm
(3.11 in)

Weight

0.48 kg
(1.06 lb)

Description

Simpson Electric’s NEW Series 4005/4006 Digital Portable Multimeters feature a rugged, dual display, 6600 count, with a wide selection of measurements. • Direct and alternating voltages from 100μV … 1000V • Direct and alternating currents from 10μA … 10.00A • Resistance from 100mΩ… 60.00MΩ • High capacitance measurement from 1pF … 40.00 mF with zero correction • Frequencies from 10.00Hz … 10MHz • Diode measurement and continuity testing • Hold, relative and duty cycle (%) measurement • Temperature measurement with K type thermocouple • Peak value measurement • Dual display for increased efficiency
