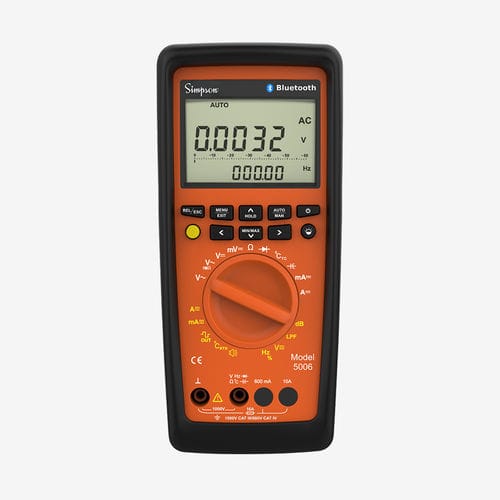

Digital multimeter 5000 Seriesportablecat Icat II
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Safety rating
- cat III, cat IV, cat II, cat I
- Additional features
- with data logger
- Protection level
- rugged, IP20, IP50
- Power supply
- AA LR6 batteries
- Applications
- industrial
- Other characteristics
- true RMS, high-resolution, connectivity, USB, Bluetooth
- Max DC voltage
600 V, 1,000 V
- Max AC voltage
600 V, 1,000 V
- Max DC current
600 mA
- Max AC current
600 mA
- Max resistance measure
Min.: 600 Ohm
Max.: 60,000,000 Ohm
- Max frequency measure
1 Hz, 6 Hz, 60 Hz, 600 Hz, 600 Hz
- Length
200 mm
(7.87 in)- Width
91 mm
(3.58 in)- Height
54 mm
(2.13 in)- Weight
0.5 kg
(1.1 lb)
Description
Simpson Electric’s NEW Series 5005/5006 Digital Portable Multimeters with Bluetooth are designed for professionals and offer safe, reliable use. The rugged device features a high-resolution display, large range count, and is equipped with more than 30 different measurement functions.
• View real time data and multimeter screen on your cell phone
• Log data into cell phone for easy on-field measurements
• Set functionality on multimeter mobile device – two-way communication
• Data logger & view function (up to 32,000 readings)
• Plug & play USB connectivity with PC for report generation
• 100kHz bandwidth for high frequency signal measurement
• 1kHz low pass filter mode for accurate measurement at VFD
• Go-No-Go function to check pass/fail of devices
• VAC with 1MOhm impedance mode to eliminate ghost voltages
• 4-20A/0-20mA scale type measurement
• Single fuse for mA & A
• Adjustable square wave output
• Temperature measurement with J, K, Pt100 & Pt1000 sensors
• External power adapter to operate meter on Mains to preserve battery life
• Selectable clamp ratio for high current measurement
• Conductance and frequency/time period measurement
