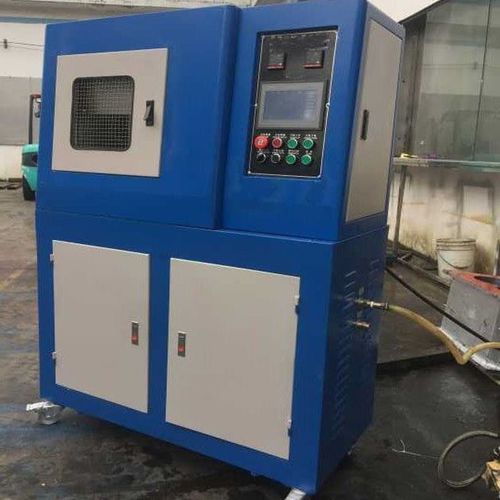

Hydraulic press

vulcanizingrubber

Product Details: Size 1000×500×1500 mm Length 1000 Millimeter (mm) Color red ,blue,green Nominal Force 0~350kg/sq.cm Product Type hydraulic Weight 800 Kilograms (kg) Width 500 Millimeter (mm) Supply Ability : 200 Set Per Month Product Description Vulcanizing Press Machine ,Hydraulic Press Machinery Feature: Silicone Rubber Plate Vulcanization Press Equipment is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving as the basis for the ingredient of mass production. Capacity: 0--100T adjustable, parallelism adjustable Operating temperature range: arbitrarily adjustable between room temperature +10 ~ 300oC (standard configuration temperature) High temperature has been done at room temperature -300oC -500oC -760oC (three grades) The total pressure acting on the plate is at least 20KN, Flat area: 300mm x 300mm (area can be customized according to demand) Working area (heated uniform surface or actual heating surface): 300mm x 300mm, Large oil pressure: 100T, oil pressure system is not easy to leak oil, flat plate is not easy to rust surface covered with stainless steel plate treatment, you can also choose surface plating hard chrome. Platen rising speed: 60mm/min The large rising space of the pressure plate is 70mm. Hydraulic system: automatic rising pressure holding system Cylinder stroke: Max 70mm can be customized according to customer needs
