Lip seal PNEUKO M 310pistonpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- lip
- Application
- piston
- Other characteristics
- pneumatic
- Temperature limit
Max.: 80 °C
(176 °F)Min.: -25 °C
(-13 °F)- Pressure limit
Max.: 12 bar
(174 psi)
Description

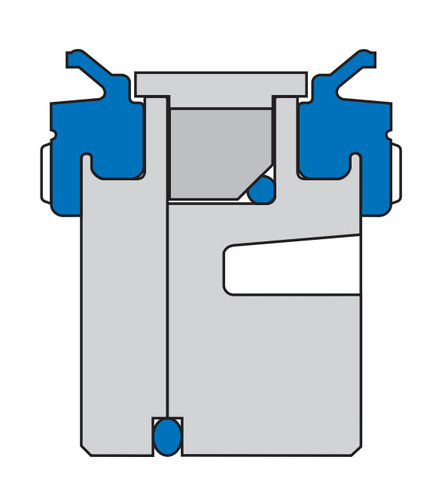

Simrit Pneuko M 210 pneumatic piston seal is very durable. The enhanced sealing lip geometry and extra venting passages result in reduced start friction.
It provides excellent sealing behavior with consistency over a broad pressure range up to 1,2 MPa. It features an enhanced guide strip that ensures running properties without any possibility of tilt. It is lightweight thanks to the aluminium design, which also ensures high absorption of energy. It can be attached to the piston rod with ease. It has a built-in static seal.
It is provided as ideal for storage and attachment in deep-drawn inserts. It can be attached with ease.
The seal has a built-in magnet for checking position with a sensor.
