Pneumatic gripper GGDD series

parallelotherfor cardboard boxes

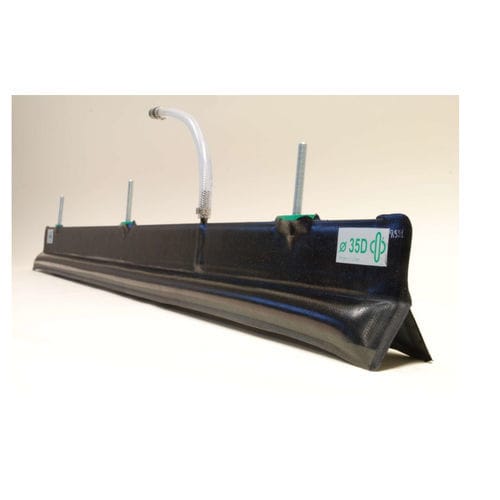

The GGDD double pneumatic gripper tube is designed to manipulate short neck and wide shoulder bottles such as (flasks, whisky bottles or Cognac bottles). It is composed of an inflatable cylinder which inflates in 2 parts on the lower part and a low fabric reinforcement. The GGD Double gripper tube is equipped with 3 fasteners and a hose for supply of compressed air. User / use Bottling: (De)palletization of bottles Bottle manufacturers: Palletization of bottles General industry: (de)palletization of various containers (plastic containers, cardboard containers, hollow glass, PET…) Technical characteristics The GGDD pneumatic gripper tube is manufactured with a vulcanised rubber base highly resistant to abrasion and high pressures, with the maximum recommended pressure being 1.2 bars. It consists of a fabric reinforcement on its lower part intended to improve its life and its abrasion resistance. The standard length of the GGD Double gripper tube is 1340 mm. It includes 3 fasteners spaced 510 mm from the centre fastener. It is delivered with 1 supply hose for supply of compressed air. This gripper is also available with a length of 1470 mm and can be supplied with dual feed supply. Composition The GGD pneumatic gripper tube is divided into three areas: Inflatable body 3 attachment points 1 inflatable tube equipped with a quick-connect fitting that can be connected to a compressed air source Customisation Our technical department is at your disposal to determine the best solution for picking up bottles during palletization or depalletization. During production with several types of bottle on a single line
