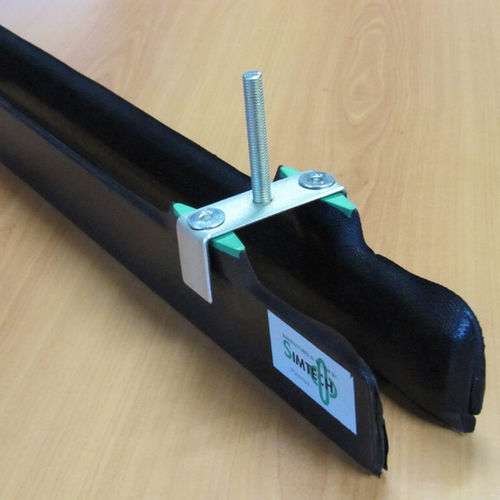

Pneumatic gripper GGS series

parallel2-jawfor cardboard boxes

The GGS type gripper tube for all types of bottles necks comes in the form of 2 inflatable bars equipped with fittings for connection to compressed air and have threaded fasteners. The GGS gripper installs quickly and easily on your machines. It facilitates handling of all types of bottles combined. The inflatable tubes that make up the gripper withstand a pressure of up to 1.2 bars. Many users around the world use and recommend this practical system. User / use Bottling: Depalletizing rows of bottles Bottle manufacturers: Palletizing rows of bottles General industry: (de)palletization of other containers (plastic containers, cardboard containers, PET…) Technical characteristics Our grippers are manufactured with polymer coated fabric substrate and are vulcanized in manufacturing, making them ultra strong and guaranteeing that they will have a long lifespan. Several inflated diameters are available: in standard sizes we offer 28mm, 33mm and 38mm. For any other diameter, please consult us. Standard GGS grippers are 1340mm long, have 3 M10x70mm attachment points (centre spacing between attachments is 510mm) and have a 300mm long supply hose. We also produce GGLS grippers 1470mm long or with other lengths for non-standard pallets. Performance Our GGS grippers can move rows and layers of bottles. Upon request they can be supplied with handles, control buttons, pressure gauge and mounting rings. They consist of 2 sides connected by plates with M10 threaded fasteners. Equipped with cylinders that inflate inwards, this clever gripper has an adjustable height and centre spacings, a major asset when you want to limit handling time.
