Pneumatic gripper GGF(A)

parallelotherfor cardboard boxes

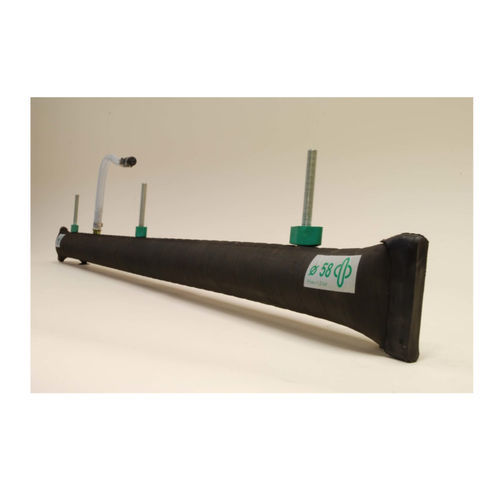

The GGF (A) type gripper tube for gripping bottles comes in the form of an inflatable cylinder equipped with supply(ies) for connection to compressed air, with threaded fasteners, for quick mounting on your gripper heads. Thanks to its useful length, it is mainly used for most standard long-necked bottles, such as wine bottles, beer bottles and many others. It has already been proven worldwide. User / use Bottling: Depalletization of bottles Bottle manufacturers: Palletization of bottles General industry: (de)palletization of various containers (plastic containers, cardboard containers, PET…) Technical characteristics Our gripper tube for gripping bottles are manufactured with a highly abrasion resistant polymer coated fabric substrate then are vulcanized. Our GGF has a thick reinforced gum rubber body and rough appearance which gives it a long life span and increased robustness. In addition, our GGF gripper tube is also reinforced at the ends to prevent any risk of leakage. A layer of specific food-grade gum rubber can be added upon request. Among our GGF line, we offer several inflation diameters (standard and custom) which can manipulate all your long-neck bottles, regardless of their capacity. The standard properties of our GGC gripper are: A length of 1340mm or 1470mm for its long version(GGLC). Attachment with 3 M10X70 threaded rods. An air supply. GGF grippers tubes are used in automated processes for handling bottles. When your facility is ready, our grippers are an indispensable instrument for your production lines. Very strong, they can withstand up to 1.2 bars of pressure.
