Analysis software SPARK3D

interfacesimulationdesign

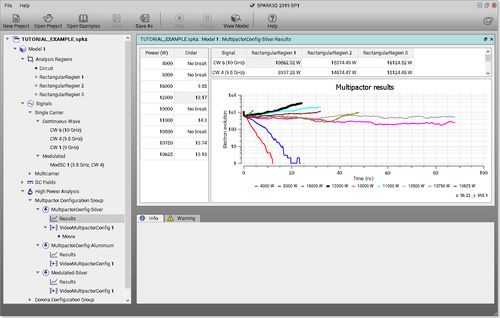

Spark3D is a unique simulation tool for determining the RF breakdown power level in a wide variety of passive devices, including cavities, waveguides, microstrip and antennas. Spark3D can import field results from CST Studio Suite simulations directly to analyze vacuum breakdown (multipactor) and gas discharge. From this, Spark3D calculates the maximum power that the device can handle without causing discharge effects. Typical approximate approaches to determine the RF breakdown power level of any component are intentionally conservative. Spark3D is based on advanced methods which analyze the breakdown phenomena numerically, predicting more realistic breakdown power levels, and thus improving the design margins. Spark3D Features The main Spark3D features include: Import the electromagnetic (EM) fields from different EM solvers. Automatic determination of the breakdown power threshold. Definition of analysis boxes to choose the critical regions for analysis. Output interface with rich simulation data, in table, plot and 3D view forms. Spark3D is an optional part of CST Studio Suite® and is also available as a stand-alone offering. Multipactor Analysis The multipactor effect is a microwave breakdown discharge occurring in vacuum conditions caused by the formation of an electron cloud. High-energy electrons collide with the walls of the device, releasing secondary electrons, eventually creating an electron avalanche. The continuous release of electrons results in the creation of an electron plasma which degrades the response of the component.
