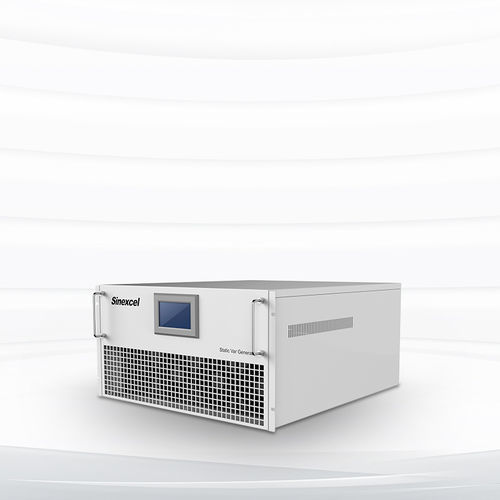

Current generator SVG

voltage

TECHNOLOGY UPGRADATION OF POWER FACTOR CORRECTION INVERTER BASED PFC NEW TECHNOLOGY UPDATED THE OLD PFC REQUIREMENT When we talk about Smart grid, when we talk about Technology upgradation The core pursuit is Strong energy Accurate control Stable system SVG works as a dynamic reactive power source, adopts high-speed computation components like DSP/IGBT, combining with super precise control program, following the grid current variation in real time, improving PF value to 0.99 within 15ms BEST STRATEGY FOR DYNAMIC CHANGING REACTIVE POWER Ultrafast 15ms full compensation Full operation process including load current detection, reactive power calculation, SVG real time outputs compensation current Super stable Less likely to be influenced by the changes of system impedance and voltage, not afraid of high THDI systems Great performance PF value up to 0.99 INVERTER BASED COMPENSATION A MORE FLEXIBLE ENGINEERING SOLUTION FOR END USERS Power electronics circuit with DSP control design make SVG footprint is reduced 1/2 to 2/3 compared to the traditional PFC solutions at the same capacity
