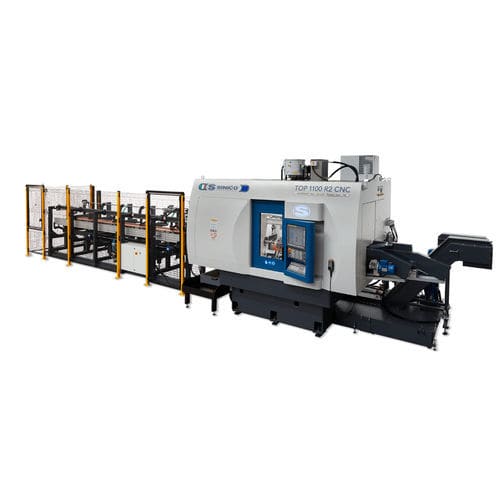

Rotary transfer machine TOP 1100 R2

CNC6-positionhigh-productivity

Automatic numerical control custom cutting end working machine. Rotary transfer machine with horizontal axis for tube and bar end cutting and machining. Numerical control machine with high productivity, up to 2750 pieces/hour, designed for the machining of small and medium pieces: bar diameter from 4 to 55mm, finished piece length up to 200mm. Excellent performance for all types of machining It is able to perform the following processes: Chamfering – Facing – Drilling – Threading – Turning with static piece – Boring – Forming – Marking General features Machine Weight 7000 Kg Installed Power 70 kVA Diameter 4 - 55 mm - Length: 10 - 200 mm Lenght Of Loadable Bars 2500 - 6000 mm (standard) Operating Units HSK 50 Motor Power 5,5 kW/7,5kW Spindle Rotation Range 400 - 4500 rpm (standard) Cut off unit Motor Power 5,5 kW/7,5kW Blade Rotation Range 30 - 300 rpm (standard) Maximum Blade Diameter 285/350 mm
