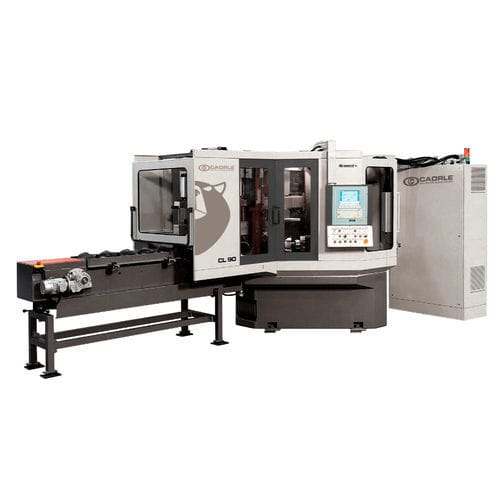

2-axis CNC machining center Caorle CL 90vertical2-spindleISO 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2-axis
- Spindle orientation
- vertical
- Number of spindles
- 2-spindle
- Spindle mount
- ISO 50
- Other characteristics
- high-power, automated loading/unloading
- Power
15 kW
(20.39 hp)- Weight
13,700 kg
(30,203.33 lb)- Overall length
9,000 mm
(354.3 in)- Overall width
3,000 mm
(118.1 in)- Overall height
2,500 mm
(98.4 in)
Description
CNC Working center equipped with 90° positioned working unit to machine welding elbows (facing and external chamfering) and equipped with an automatic loading/unloading system.
General features
Ø Min. Of Curve DIN2605
DN50 125
Ø Max. Of Curve
DN200 R305
CNC Longitudinal "Z" Axes: No. 2
Nr. 2
Catalogs
CAORLE CL 90
2 Pages
