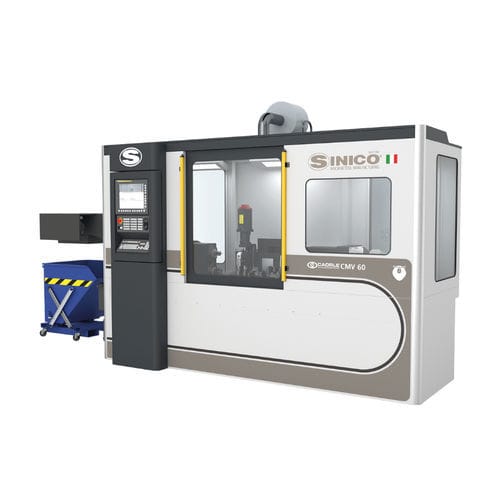

CNC trimming machine Caorle CMV 60

horizontalvertical

The CMV60 model trimming center is a machine designed and built in various models that allows the machining of the ends of bars, tubes, molded parts and forging by means of 2 opposing heads each having a maximum of 3 spindles: a milling spindle a centering / drilling spindle a tapping spindle General features Max Workable Length 1000 mm Min. Workable Length 50 mm Min. Clamping Diameter 10 mm Miax Clamping Diameter 100 mm Min Milling Diameter 10 mm Max Milling Diameter 80 mm Max Drilling Diameter 20 mm Max. Drilling Depth 60 mm Max. Tapping Capacity 24 mm Max Tapping Depth 60 mm Spindle Rotation Speed Min.-Max. 15 - 1500 rpm Spindle Power 5,5 - 11 kW Spindle Attachment HSK63 - ISO40 General Dimensions (LxWxH) 4780 x 2355 x 2150 Machine Weight 6200 Kg
