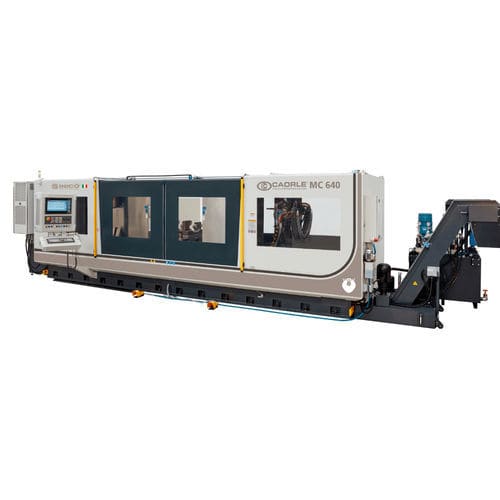

3-axis CNC machining center Caorle MC640horizontalHSK-6320 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- HSK-63
- Number of tool stations
- 20 tools, 10 tools
- Associated functions
- milling, drilling
- Applications
- for bar machining, for tubes
- Other characteristics
- with automated loading
- X travel
325 mm
(12.8 in)- Y travel
325 mm
(12.8 in)- Z travel
600 mm
(23.62 in)- Rotational speed
Max.: 5,000 rpm
(31,416 rad.min-1)Min.: 100 rpm
(628 rad.min-1)- Power
22 kW
(29.91 hp)- Weight
13,700 kg
(30,203.33 lb)- Overall length
9,000 mm
(354.3 in)- Overall width
3,000 mm
(118.1 in)- Overall height
2,500 mm
(98.4 in)
Description
Machining centre for machining at the ends, equipped with 2 opposing 3-axis operating units. Numerical control machine capable of simultaneously performing end machining on pipes or bars. Machine designed to be enslaved by an automatic loading system
It is able to perform operations of:
bezel
facing
deep drilling in axis and off axis
thread
turning with static piece
boring
General features
Machinable Diameter Min.-Max.
20 – 275 mm
Min. Workable Length: 20 Mm
20 mm
Machinable Length On Request
1000 mm
Min-Max Tapping Size: M5 - M24
M5 - M24
