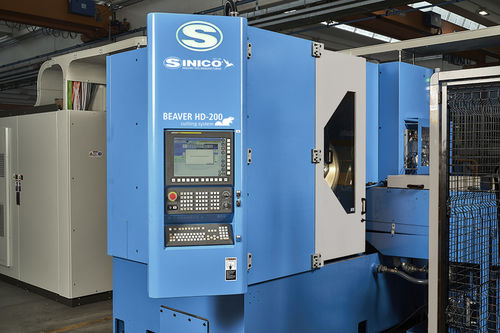

Blade cutting system BEAVER HD-200

for metalbarCNC

suitable for the use of discs with HSS or hard metal blade.The beaver hd200 cutting-off machine is equipped with an automatic bar loading magazine, to feed the cutting-off unit in an automatic cycle. The philosophy of this machine is to withstand heavy machining and is structured to absorb vibrations during the cutting cycle. This results in higher productivity and longer blade life.Designed for cutting medium and large series of workpieces with diameters from 50 mm to 200 mm. Cutting unit with belt and helical gear transmission.This is the device that cuts the bars. Consisting of a blade driven by an electric motor via a V-belt and a ground helical gear, it reduces cutting times and noise. The cutting parameters are set in a very simple way on the dedicated screen of the Sinico HMI software Multi-speed feed system of the cutting unit Allows the advancement of the cutting unit by means of a continuous speed adjustment in order to keep the volume of chips constant removed from the teeth of the blade, when cutting a section of material. The mechanical movement of the cutting unit is entrusted to a ball screw driven by a brushless motor We develop miter saws with maximum power and intelligence for exceptional results and uncompromising work efficiency. To be combined with an automatic warehouse and a machine tool with rebooted machine interlocking. Bar feeding Feed Ball screw with brushless servomotor Sliding Recirculation system of preloaded rollers Motor torque 30 Nm Nominal axial load capacity 450 kg Maximum axial load capacity 1262 kg Load speed 50m / min Blade Type HSS, TCT or Cermet Diameter 500-630 mm in HSS - 500-600 in TCT Hub Ø180
