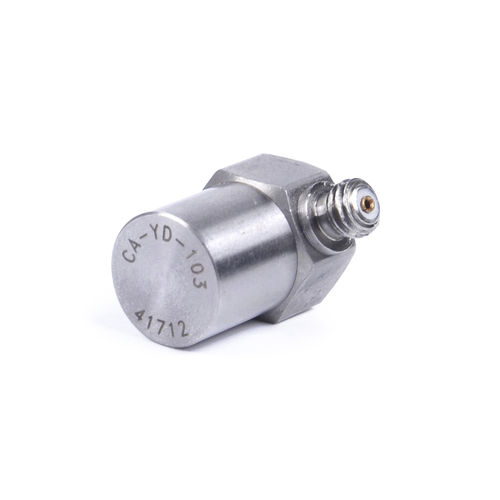

Piezoelectric accelerometer CA-YD-103

Features: * General vibration testing * Small size, wide frequency response * Side output Specifications: Sensitivity(20±5℃) - 20 pC/g Measurement Range(pk) - 2000 g Max Transverse Sensitivity - ≤5 ％ Frequency Response（±5%） - 0.5 ～12,000 Hz Mounting Resonant Frequency - 40,000 Hz Operating Temp. Range - -20～+120 ℃ Temperature Response - See Graph Transient Temperature Response - 0.5 g/℃(0.3Hz) Magnetic Sensitivity - 2 g/T Base Strain Sensitivity - 0.6 g/με Case Isolation - ＞109 Ω Capacitance - ～700 pF Mounting - M5 Sensing Element - Piezoelectric Ceramics Sensing Geometry - Central compressed Case Material - Stainless steel Weight - 14 g Output - Side L5 Accessories - Certificate - Calibration parameter, frequency response M5, M5/M8 Stud, Protection cap - Each one L5/ L5(2m) STYV-1 - one
