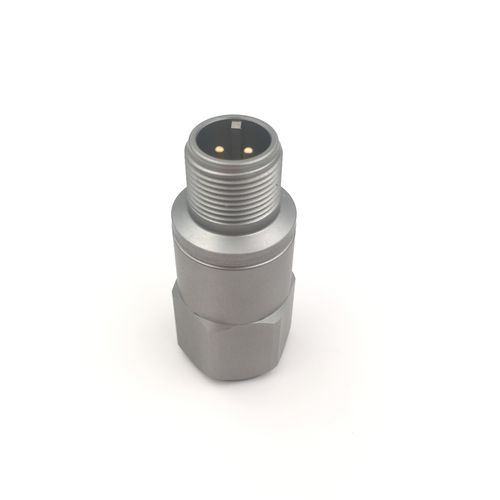

Features:
Built-in IEPE, low noise, strong resistance of disturbance
Isolated, Floating, industrial site monitoring
2-pin MIL-C-5015 two-pin socket output
Specifications:
Sensitivity(20±5℃) - 100 mV/g
Measurement Range(pk) - ±50 g
Max Transverse Sensitivity - <5%
Frequency Response(±10%) - 0.6~10,000 Hz
(±3dB) - 0.4~13,000 Hz
Amplitude linearity - ≤1%
Operating Temp. Range - -40~+120 ℃
Temperature Response - See Graph
Shock Limit(pk) - 2000 g
Noise(rms) - <50 μV
Output Impedance - <100 Ω
Operating Voltage(Constant current source) - 18~28 VDC
Operating Current - 2~10 mA
DC Bias Voltage - 12±2 VDC
Case Isolation - ≥108 Ω
Mounting - 1/4-28
Sensing Element - Piezoelectric Ceramics
Sensing Geometry - Shear
Case Material - 304 Stainless steel
Sealing - IP65
Weight - ~75 g
Output - Top 5/8-24 2-pin Socket
Accessories -
Certificate - Calibration parameters
1/4-28 convert M6 Stud - one
