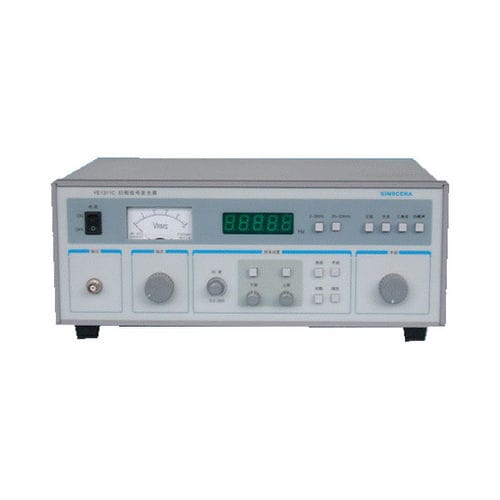

Signal generator YE1311

Features: * Multi- waveforms output ;Power/Signal Output; * Frequency and Power value indication; * Manual/Auto sweeping frequency; upper/Low Limit Frequency and sweeping speed can be preset(the ratio of sweeping frequency is 1000:1); * Logarithm /Linear Mode, Apply for acoustics, vibration testing and driving JZK-2 and more small modal shakers. Specification: Output - Output Waveform - Sine; Square; Triangle ; White Noise - Frequency Range - 2Hz to 2kHz ;20Hz to 20kHz Switchable - Signal Output - 1Vrms - Power Output - 30W（4Ω Load） - - Frequency Response - ≤±1dB( 4Ω Load, full power) Frequency Display - Frequency Display - 0 to 99999Hz - Resolution - 2 to 2kHz: ±0.1Hz; 20 to 20kHz: ±1Hz - Error - 0.01%±1Hz - Refresh Rate - 2 to 2kHz: 1 times/second ; 20 to 20kHz: 10 times/second Voltage Indication - Voltage - 25Vrms±8%（≤20V，10Hz to 20kHz） - Detection Mode - True RMS Sweeping - Sweeping Period - 0.1S to 20S adjustable - Sweeping Mode - Linear, Logarithm Distortion (20Hz to 20kHz) - Signal Output - ≤±0.6% - Power Output - ≤±1%(4Ω Load) Operating Circumstance - Temperature - Operating：0 ℃ to +40 ℃; Storage：-55 ℃ to +85 ℃ - Humidity - 95%R.H.Max. Power Supply - AC220V50Hz/110V60Hz External Characteristic - Dimensions - 360mm (W) ╳207mm (H) ╳120mm(D) - Weight - About 4Kg Output Type - Power - JS3-2 Terminal - Signal - BNC Socket Accessories - Output Cable - Signal Output Cable: one ; Power Output Cable: one - AC Power Cable - one
