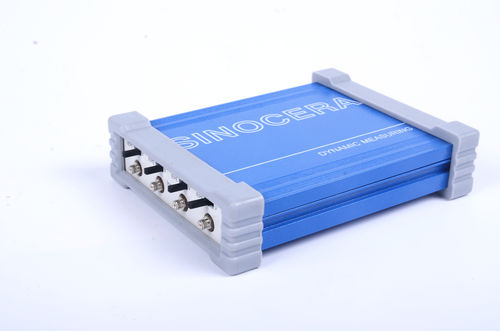

Data acquisition system YE6231

Features: 4 channel and 24-bit resolution 96kHz per channel;USB2.0 interface Selectable signal input: Voltage, and IEPE Continuous acquisition Small size and light weight Specification Channel - 4 A/D Digits - 24 Digits (∑-△) Voltage Input Characteristics - Input Range:≤±10VP;Input Impedance:≥10MΩ;Signal Frequency Range:DC-50kHz IEPE Input Characteristics - IEPE Excitation Power：4mA/+24VDC; Signal Input Range: ≤±10VP ; Signal Frequency Range:0.3Hz-50kHz Signal to Noise Ratio - 80dB IEPE Excitation Power - 4mA/+24VDC Signal Input Range - ≤±10VP Signal Frequency Range - 0.3-30kHz(-3dB±1dB) Amplification Factor - ×1、×10、×100 Accuracy - ±0.5％ Max sampling rate - 96kHz/CH，parallel Connector - USB2.0 Trigger Method - Signal Trigger Sampling Method - Real time sample/ Real time display / Continuous storage (depend on hard disk of PC) Dimensions - 118W×35H×150D Weight - 0.5Kg Power Supply - Powered by USB interface Temperature - Operating Temp. ：0℃ - +40℃; Storage Temp.：-55℃ - +85℃ Accessories - 2M double ended BNC input cable：4；USB cable：1；YE7600 CD：1
