Production description:
IEPE is the acronym of integrated piezoelectric.It refers to the internal integerated circuit of accelerometer.
Our IEPE piezoelectric sensor has the charge amplifier inside itself,one general IEPE sensor need to use DC source to supply power.

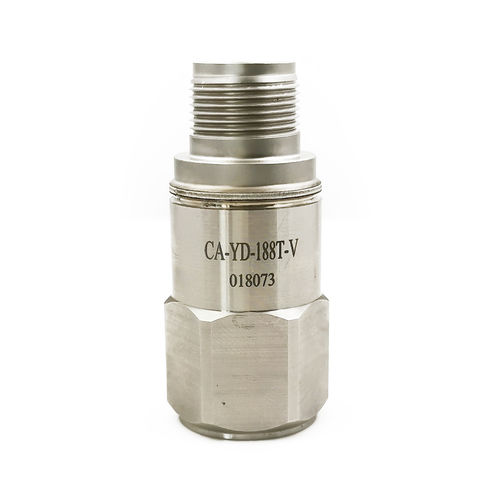

Piezoelectric Accelerometer
Model: CA-YD-188T-V
Features:
- Built-in IEPE, low noise, strong resistance of disturbance
- Isolated, Floating, industrial site monitoring
- 2-pin MIL-C-5015 two-pin socket output
Specifications:
Sensitivity(20±5℃) 500 mV/g
Measurement Range(pk) 100 g
Max Transverse Sensitivity <5%
Frequency Response(±10%) 0.6~5,000 Hz
(±3dB)
0.1~10,000 Hz
Amplitude linearity <1%
Operating Temp. Range -40~+120 ℃
Temperature Response See Graph
Shock Limit(pk) 2000 g
Noise(rms) ≤40 μV
Output Impedance <100 Ω
Operating Voltage(Constant current source) 18~28 VDC
Operating Current 2~10 mA
DC Bias Voltage 12±2 VDC
Case Isolation ≥100 MΩ
Mounting 1/4-28
Sensing Element Piezoelectric Ceramics
Sensing Geometry Shear
Case Material Stainless steel
Sealing IP67
Weight ~100 g
Output Top 5/8-24 2-pin Socket
Accessories
Certificate Calibration parameters
1/4-28 convert M6 Stud one
