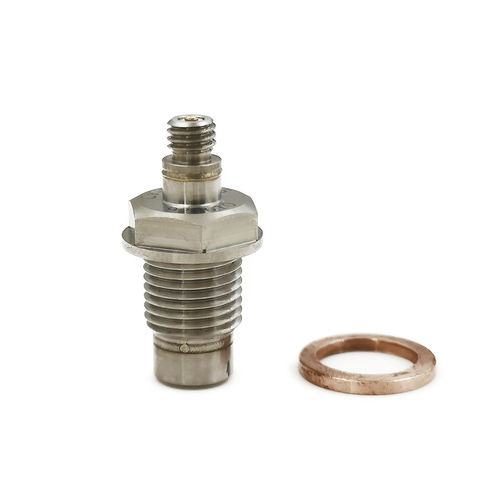

Piezoelectric pressure sensor CY-YD-205

threadedstainless steel

Features: l Small size, light weight 2 Measurement of pipeline pressure, burst pressure 3 Can be on Static Calibration 4 Wide frequency response, large stiffness 5l Easy installation Specifications: Static indicators Pressure sensitivity ～100pC/MPa Operating Range 0～30MPa 0～60MPa Optional Overload 120% Non-linearity ＜1%FS Hysteresis ＜1%FS Repeatability ＜1%FS Isolation Resistance ＞1013Ω Capacitance (1000Hz) 7pF Dynamic Indicators Resonant Frequency ＞100 kHz Operating Temperature -40℃～+150℃ Physical parameters Case Material High strength Stainless steel Weight 11 g Mounting Thread M10×1 Sensing Element Quartz Output Type L5 Accessories Sensor Certificate Calibration parameters Protective cap One Sealing gasket one L5 /L5 STYV-1Cable one（2m）
