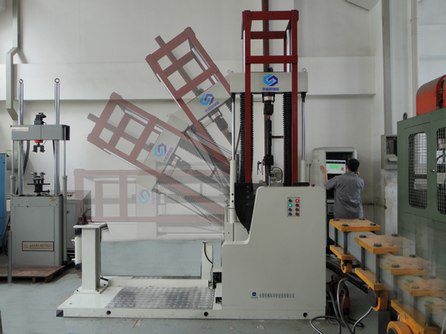

Multi-parameter test bench

shock absorberhydraulic

Product introduction The shock absorber comprehensive test bench is mainly used to complete the shock absorber performance endurance test other test equipment. The bench is composed by the main frame, control system of hydraulic station accessories. Test speeds can reach 2.0 m/s. Main technical parameters: Maximum static force test: +/- 30 Kn The maximum dynamic test force: +/- 25 Kn Static test force measurement precision, accuracy is shown value +/- 1％ (2％ - 100％ range) Displacement measurement precision: the accuracy of +/- 1％ FS The actuator stroke: + 100 mm Test frequency: 0.01-20 Hz Control waveform: sine, square wave, triangle wave, monotonous wave (oblique wave), external input wave, etc. The controller has the function of phase compensation. Set aside the function extension interface. Protection function: low level, filter clogging, overload over-temperature, preset fatigue number to, fault alarm stop function.
