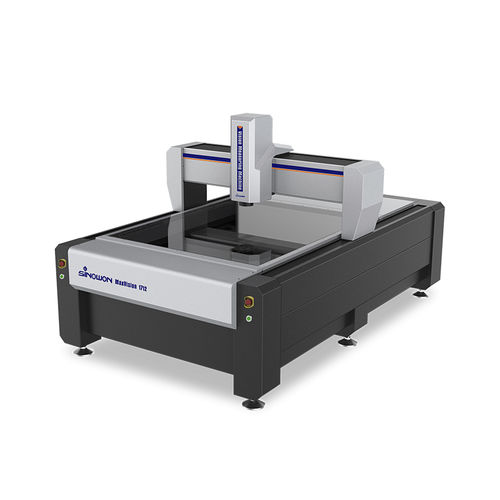

Vision measuring machine MaxVision series

white lightautomaticCNC

Product Feature ◆ Moving bridge structure, measurement workpiece is fixed; ◆ Four-axis CNC fully auto close loop control, auto measurement; ◆ “00” grade “JINANQING”marble base and pillar, stable and reliable; ◆ Imported open type linear scale, resolution is 0.001mm, high accuracy, great stability; ◆ Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position; ◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement; ◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time; ◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently; ◆ With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation; ◆ Optional laser probe, it can also be customized according to customer request; ◆ Optional 3D Touch probe is available
