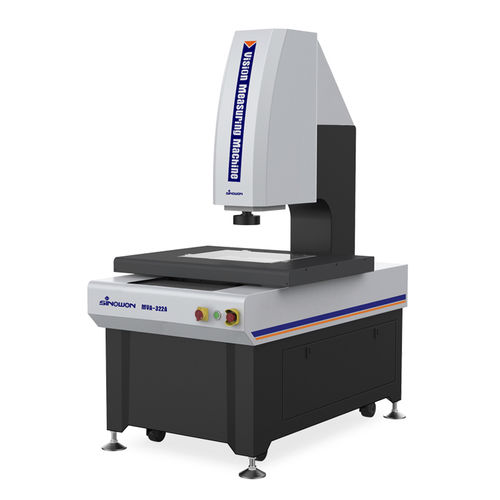

Vision measuring machine MVA series
white lightfully-automaticCNC

Vision measuring machine - MVA series - Sinowon Innovation Metrology Manufacture Limited - white light / fully-automatic / CNC
Vision measuring machine - MVA series - Sinowon Innovation Metrology Manufacture Limited - white light / fully-automatic / CNC
Add to favorites
Compare this product


Characteristics

Technology
vision, white light
Operating mode
fully-automatic, CNC
Measured material
parts
Other characteristics
high-precision, cantilevered

Description

MVA series is a cantilevered high accuracy fully automatic vision measuring machine developed for GD&T measurement, with three axis automatic control. It equipped with Automatic focusing, automatic lighting control, optimization of hardware and software configuration to achieve the measurement of linear and geometrical dimensions. Product Characteristics ◆ XYZ three axis CNC automatic control and accurate positioning; ◆ Granite base and column, good stability; ◆ Precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system; ◆ Imported 0.5 um high precision linear scale to ensure the positioning accuracy and measurement accuracy of the system; ◆ High resolution color camera to meet the needs of clear observation and accurate measurement; ◆ 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed; ◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division; ◆ Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control; ◆ Automatic measurement program can be set to complete batch measurement efficiently and quickly.
