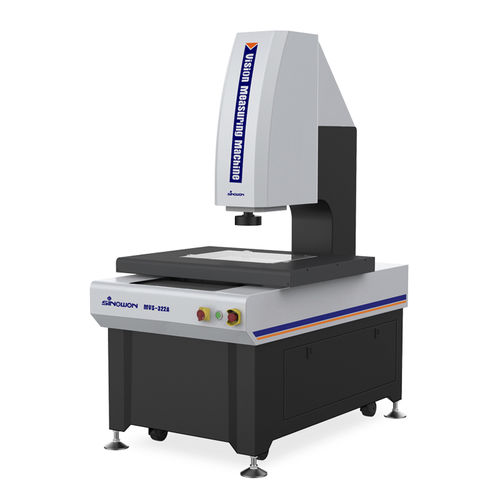

Vision measuring machine MVS series

white lightfully-automaticCNC

MVS series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately. Product Characteristics ◆ XYZ three axis CNC automatic control and accurate positioning; ◆ Granite base and column, excellent stability; ◆ Precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system; ◆ 0.5 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system; ◆ High resolution color camera to meet the needs of clear observation and accurate measurement; ◆ 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed; ◆ With programmable surface 4-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division; ◆ Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control; ◆ Automatic measurement program can be set to complete batch measurement efficiently and quickly.
