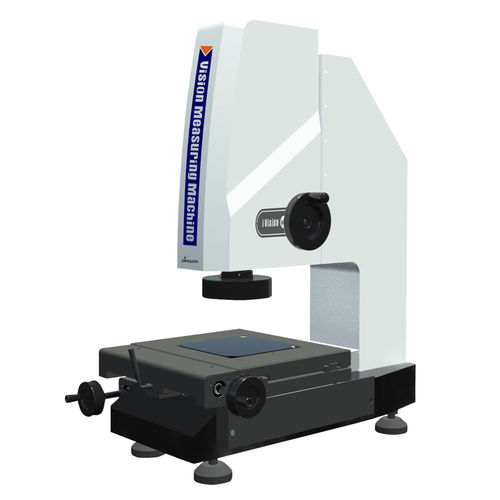

Vision measuring machine iMS-1010B

geometricpartsfor medical applications

Brief Induction: IMS-1010 is the 2D vision measuring machines with optical detent zoom lens for the measurement of geometric dimension and tolerance, it is movable by the light weight: 35Kg and small size: 498x382x627mm, and it is widely applied at the industry of 3C, semiconductor, PCB, automobile parts, medical parts, precise molds, etc. Product Characteristic: l IMS-100 is able to be moved in different workshop and laboratory by the mall size and light weight easily; l High precision toothless rod and fast moving locking device ensures repeatability error is less than 2um; l High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um; l High definitive detent zoom lens and high resolution color camera ensures clear image without distortion; l With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division; l Powerful function iMeasuring 2.0 Measuring Software, highly enhance the quality control, and it can output Word, Excel, PDF, TXT report and AutoCAD file automatically.
