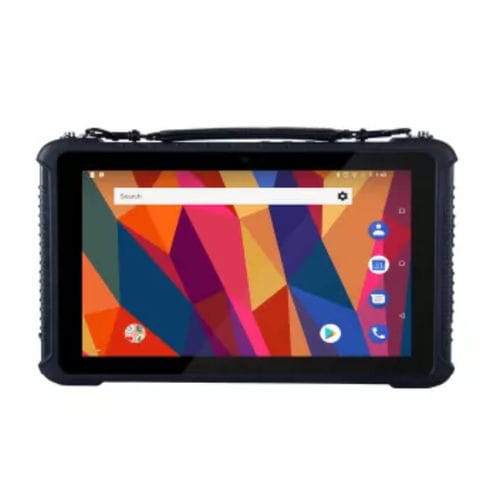

10.1" 16:10 Full Rugged Android Pad
• MTK 8375A Quad Core
• 10-Point PCT Touch
• Light 1014g Weight
Operating System -
Type : Rugged Tablet
Demension : 280*187*22mm
Weight :
Device unit: 1014g
Unit with giftbox and standard accessories:1990g
docking:290g
Device Color : black( bottom shell in black, front shell in black)
Camera -
Front : 2.0MP
Rear : 13MP auto-facus with flashlight
Speaker -
Embedded 8Ω/0.8W waterproof speaker x 1
Mic -
Sensitivity:-42db, output resistance:2.2kΩ
Battery -
Type : build in polymer li-ion battery
Capacity : 3.7V/10000mAh
System Hardware Configuration
CPU -
Type : MTK 8735A Quad Core
Speed : 1.45Ghz
RAM -
LPDDR3 : 2GB
ROM -
Emmc : 32GB
G_sensor -
Gravity acceleration sensor
L-Sensor -
Ambient Light Sensor
M-sensor -
Magnetism Sensor (Compass)
Gyro-Sensor -
Virtual Gyro
Bluetooth -
BT4.0 (BLE) class1 transmission distance:10m
2G/3G/4G -
GSM(B1、B2、B5、B8)& WCDMA (B1、B2、B5、B8) & TD-S(B34、B39) & TDD(B38、B39、B40、B41)& FDD(B1、B2、B3、B4、B5、B7、B8、B 17、B 20)
GPS -
Integrate MT6255 (four in one chip),Support GPS/BeiDou/Glonass
NFC -
NXP NFC 13.56MHz support SO/IEC 下14443A/14443B/15693/18092/mifare protocol,Card reading distance:3cm~5cm
Interface Configuration
TF slot -
Extensive External Memory : x1 max:128G
SIM Slot -
SIM Card x1
USB Interface -
Extend external memory and data transfer : Standard USB 2.0*1 Android OTG x1
Earphone Jack -
Audio Output : ∮3.5mm standard earphone jack x1
DC Jack -
Power : DC 5V 3A ∮3.5mm Power connector x1
