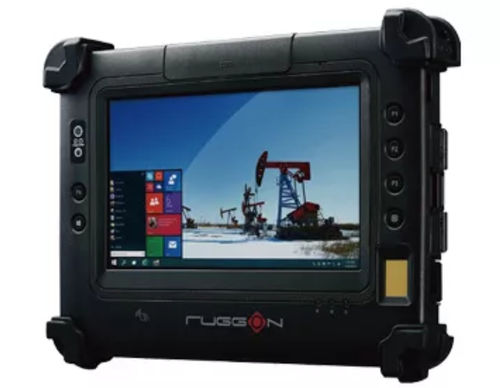

7" Fully Rugged Windows Tablet
• Capacitive multi-touch with Gorilla Glass
• 850 nits, Optical Bonding with AR/AF sunlight readable solution
• IP65, MIL-STD-810G, 5 feet drop resistance
• NFC, GNSS, WLAN, WWAN, Bluetooth
• Hot swappable battery design
Operating System - Windows 10 IoT Enterprise for Small Tablet
Window Embedded 8.1 Industry Pro for Tablet
CPU - Intel ® Celeron® N2930, 1.83GHz
Storage & Memory - DDR3L 4GB RAM memory, optional 8GB
128GB/256GB, optional 128GB FIPS 140-2 Level II SSD
Display - 7-inch WSVGA (1024 x 600)
Multiple capacitive touch with Gorilla glass
850 nits, Optical Bonding with AR/AF solution
Communications - NFC
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.0 + EDR
Optional 4G LTE
GNSS (GPS, GLONASS, optional BeiDou)
Camera - 2MP front camera
8MP rear camera, AF with LED flash
Expansion - Optional MRZ reader+ MSR 2-in-1 module
Optional 2D barcode reader + MSR 2-in-1 module
Security - TPM 2.0
Optional fingerprint reader (capacitive type, 508 dpi)
Optional Janus USB Ignition Key, Phoenix SecureWipe
Control Button - Programmable button x 4
Power, menue, Windows button
LED Indicator - Power on/off
Wi-Fi on/off
Storage
Sensor - Gyroscope, G-sensor, E-compass, light sensor
Power Adapter - AC 100V~240V, 50~60Hz Input; 19VDC@3.42A, 65W
Battery - Standard : 2900mAh, 7.5V
Extended : 4200mAh, 7.4V, hot swappable (option)
I/O Interface - USB 3.0 type A x 2
Ethernet (RJ-45, 10/100/1000) x 1
RS-232 x 1
Micro SD slotx 1, Micro SIM slot x 1
Audio jack x1
Speaker & microphone
12-pin docking connector x1
DC-in x 1
Rugged Features - IP65, MIL-STD-810G shock & vibration resistant, 5 feet drop
Environment - Operating temperature -20°C to 50°C
Storage temperature -30°C to 70°C
