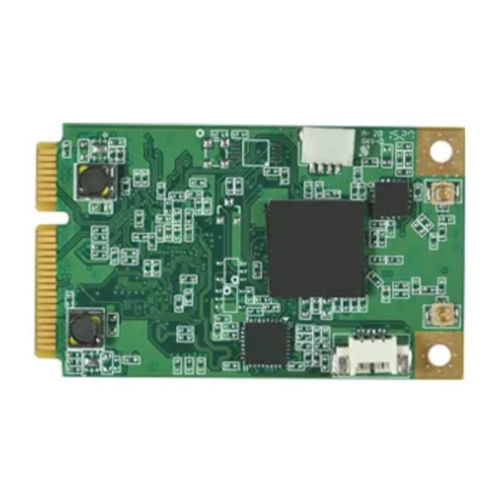

PCIe video capture card VDB-5C0N1 MC SDI

1-channel H.264real-time16-bit

Max. FPS - 1920×1080p@60/50fps in → 1920×1080p@60/50fps out Recording Mode - Hardware Compression, Real-Time Mode Dimension - 30x50.95 ( mm ) Interface - Minicard (PCIe x1) Video Input - 1xSDI Display Video Format - YV12, NV12, YUY2, RGB24, RGB32 Video RAW Data Resolution - 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps Recording Video Format - H.264 (Hardware Compression) Recording Video Resolution - 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI 720×480i@60fps 720×576i@50fps Audio Input - 1×SDI Embedded Audio A Pair of RCA Audio Connector Audio Format - Stereo / 16-bit / 32000 ~ 48000Hz SDK - Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi SDI Metadata Support - VANC Capture and Palyback Being Able to Get Timecode, Close Caption..etc. OS Support - Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )
