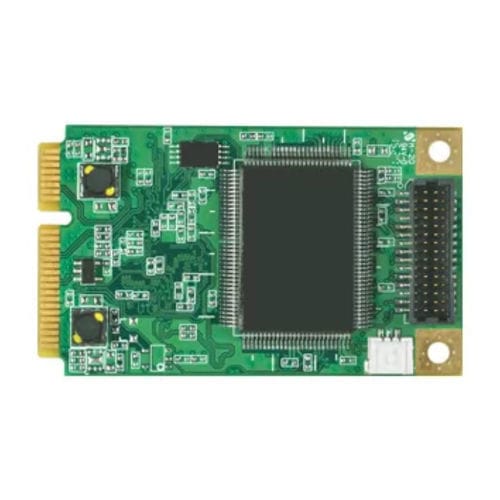

PCIe video capture card VDB-5A0N1 MC HDV

1-channel H.264real-time16-bit

Max. FPS - 1920×1080p@60/50fps in → 1920×1080p@30/25fps out Recording Mode - Hardware Compression, Real-Time Mode Dimension - 30x50.95 ( mm ) Interface - Minicard (PCIe x1) Video Input - 1×HDMI, 1×DVI-I, 1×DVI-A, 1×YPbPr ( Through On-Board Wafer Connection ) Video Output - 1×SDI ( Loop-Through Output ) Display Video Format - YV12, NV12, YUY2, RGB24, RGB32 Video RAW Data Resolution - 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps Recording Video Format - H.264 (Hardware Compression) Recording Video Resolution - 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps Audio Input - 1×HDMI Embedded Audio Audio L/R ( 2×RCA Through Wafer Connector to A/V Cable ) Audio Format - Stereo / 16-bit / 32000 ~ 48000Hz Multiple Cards - ∞ SDK - Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi OS Support - Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit )
