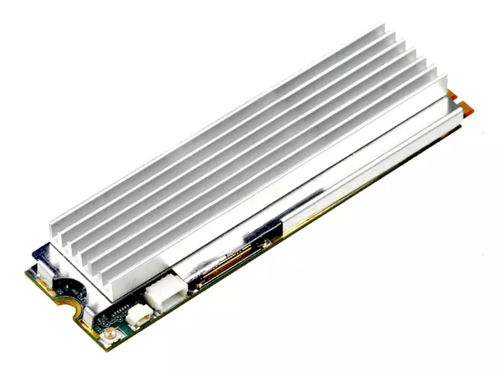

16-bit video capture card VDB-400N2 M2 AIO

16-bit video capture card - VDB-400N2 M2 AIO - SINTRON Technology
16-bit video capture card - VDB-400N2 M2 AIO - SINTRON Technology
Add to favorites
Compare this product


Characteristics

Other characteristics
16-bit

Description

Max. Input Resolution - 1920×1080p@60/50fps Video Input - 1×SDI, 1×HDMI Dimension - 22×80 ( mm ), M.2 Type B/M Interface - M.2 ( PCIe×2 ) Feature - Multi Instances, Multi Devices Video Input Detail - HDMI, 3G-SDI Video Output - N/A Color Format - Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 Build-in Hardware Encode - N/A Video Processing - Video, Audio and VANC Capture Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances Video Resolutions - 3G-SDI : 1920×1080p@60/50fps HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI : 720×480i@60fps 720×576i@50fps HDMI : 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps ✻ More resolution supported by SDK Audio Input - 2×Stereo Embedded Audio ( HDMI+SDI ) Audio Format - Stereo / 16-bit / 32000 ~ 48000Hz Supported Software Applications - vMix, OBS, ZOOM, Skype, Teams, Discord, Slack, Cisco Webex, GoToMeeting ✻ DirectShow/V4L2 Compatable Software Supported SDK - Windows and Linux SDK OS Support - Windows 7/Windows 8/Windows 8.1/Windows 10/Windows 11 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
