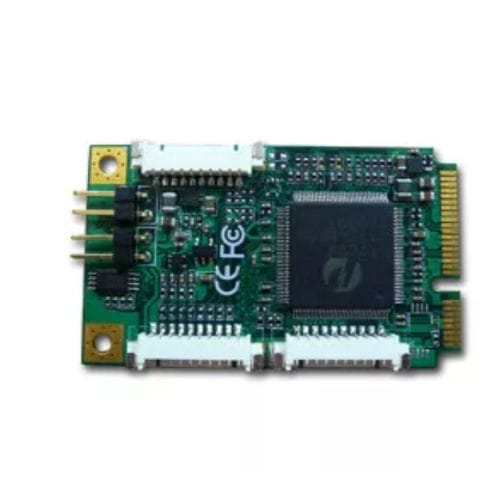

Mini PCIe video capture card VDB-310

4-channel

4ch Mini-PCIe Video Capture Card support 4 CCTV Cameras input and 4 MIC input at the same time. It's a 4 channels solution (120/100fps) in the market. Mini-PCIe (Mini Card) Interface Up to 4-channel Video Inputs Support D1, Half-D1, CIF Resolution Windows Driver & SDK Provide Dimension - 30 x 50.8 mm Interface - Mini card (66MHz) ADC - 10BITS Video Input - 4CH Audio Input - 4CH Audio Format - MONO / 8 ~ 16BITS / 8000 ~ 48000HZ I/O - N/A TV Output - N/A Watchdog - 1~255 Level Board Temp. - 40°C SDK - VC++ / .NET / BCB / VB V4L2 CPU (Display) - Intel Core 2 Duo E2200 2.2GHz CPU (Recording) - Intel Core 2 Quad Q9400 2.66GHz Memory - 512 MB VGA - 1024 x 768, DirectX 9.0c Compatible Graphic Card HDD - 500 GB OS Support - Windows XP / Vista / Windows 7 / Linux 2.6.20 or Higher (32 Bits and 64 Bits)
