Liquid heater 13.3 kW | D-8680
ductconvection

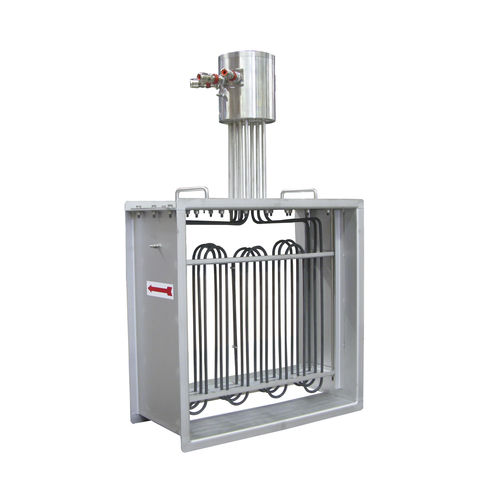

Liquid heater - 13.3 kW | D-8680 - Sinus-Jevi Electric Heating B.V. - duct / convection
Liquid heater - 13.3 kW | D-8680 - Sinus-Jevi Electric Heating B.V. - duct / convection
Add to favorites
Compare this product


Characteristics

Treated product
for liquids
Type..
duct, convection

Description

product description: Medium to be heated: 1500 m³/h Temperature in: - 25°C Temperature out: 0°C Capacity: 13.3 kW Voltage: 3 x 440 Volt 50 Hz Duct dimensions: 600 x 600 x 400 mm = W x H x D Flanges: 29 x 29 mm undrilled Material: AISI 316L Heating elements: 6 pcs. each 2217 Watt 440 Volt Diameter Ø 8.5 mm Material Incoloy 825 Watt density 1.88 W/cm² Enclosure: Type D-8680 Material AISI 316 L, alternative steel coated ( 2 layers ) Protection IP 66 Cable glands 3 pcs. type ICG brass nickel plated Position enclosure 250 mm above duct ( cool zone ) Temperature control: Built in thermostat, - 20 …+ 40ºC, indirect switching Temperature safety: Built in thermostat, + 20 …+ 500ºC, bulb clamped against a heating element, set point appr.400°C, indirect switching Bulb thermostats: Placed in AISI 316 thermo wells Marking: Ex II 2 G – Ex de II C T 1 – EN IEC 600079-1 according ATEX 94/9/EC Finishing: Internal wired on terminals Stainless steel parts pickling and passivating Alternative steel parts 2 layers coating
