Modular analyzer Apollo Box

data acquisitionmulti-channelcombined

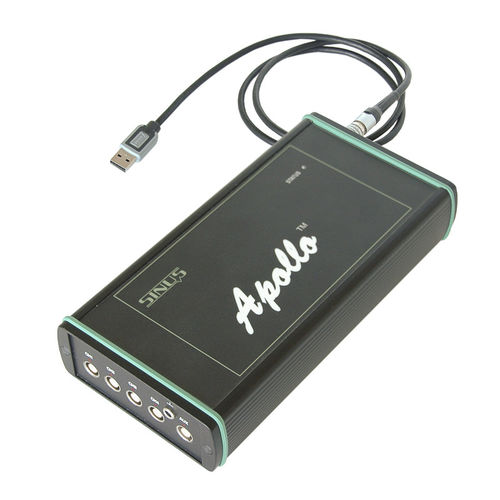

Acoustic analyzer Data Acquisition System with 24-bit ADC and USB Interface OVERVIEW The Apollo-Box is a flexible and reasonably priced 2- or 4-channel data acquisition system with a USB interface. This small and robust box transforms a PC combined with our flexible software into a high-quality multi-channel acoustic analyzer for a wide variety of acoustic and vibration measurement applications. Based on your measurement requirements you may choose from variants with 2 or 4 LEMO7 inputs or 4 BNC inputs. Further additional channels extend the functionality of the Apollo-Box. Among others 8 additional low-sample-rate channels and 2 tacho or trigger channels are available. You may also use the Apollo-Box as a channel extension to the Soundbook MK2 measurement system, for example. The Apollo-Box is the ideal tool for: Occupational safety and environmental protection Engineering services Quality assurance Research and development For multi-channel systems with 4x Apollo_Box or 3x Soundbook_Expander an extension to 32 channels is possible. The measurements you may implement with the modular software packages we offer include: Sound level measurements Frequency analysis Signal recording Human vibration measurements Pass-by noise measurements Building acoustics Machinery vibration measurements Modal analysis Order analysis Structural analysis
