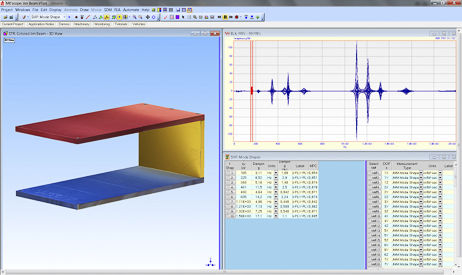

Modal Analysis Software OVERVIEW The well-known modal analysis software package ME'scope VES der Firma Vibrant Technology, Inc. has been developed for machine manufacturers and test engineers and cooperates optimally with measurement data of our software. Data acquisition can be performed using SAMURAI Transfer FRF. Afterwards the SAMURAI measurement data can be imported via UFF. Depending on the platform, from 2 up to 128 synchronous digital measurement channels and outputs are available to the user in the laboratory and for field testing. The ME'scope software package is very versatile and offers almost unlimited possibilities for the qualified mechanical engineer. During the measurement, the selected results are displayed in real-time windows. Simultaneously the measurement values are stored on hard disk for further analysis. The data can be stored and output in various formats (WMF, WAV, µGraph, etc.). The key features of ME'scope VES are: Signal analysis (level, FFT, 1/n octave) Modal and operation vibration analysis For the SIGNAL ANALYSIS ME'scope offers: Time signal: A-, B-, C-, KB-, MS-weighted FFT Real, Imaginary, Amplitude, Phase, Nyquist Power and cross spectra Transfer function, coherence The MODAL ANALYSIS is performed using transfer functions. Transfer functions in UFF format can easily be imported from other software packages, e.g. the SAMURAI FRF option. The following modal values are calculated: Characteristic frequency Attenuation degree Eigenvector The work of the engineer is simplified by convenient measurement data management functions, the Geometry Editor and the animation.
