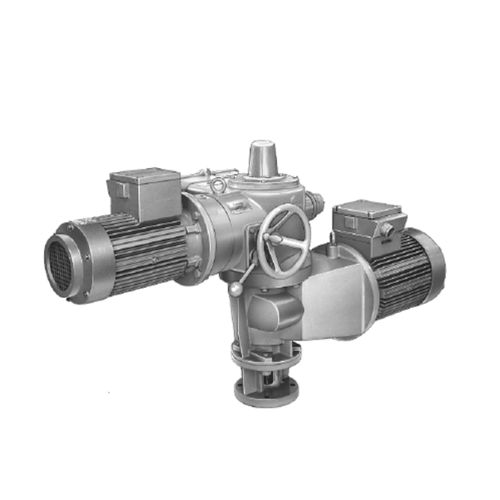

Motorized valve actuator M76348 series rotarymodulatingwith handwheel
Add to favorites
Compare this product
Characteristics
- Type
- motorized
- Movement
- rotary
- Other characteristics
- modulating, with handwheel, high-speed
- Torque
750 Nm, 1,500 Nm, 3,000 Nm
(553.17 ft.lb, 1,106.34 ft.lb, 2,212.69 ft.lb)- Rotational speed
Min.: 5 rpm
(31.42 rad.min-1)Max.: 80 rpm
(502.65 rad.min-1)- Power
3 kW
(4 hp)
Description
mode of operation to DIN VDE 0530, Part 1,
in closed-loop control operation: intermittend duty
S4/S5 -10% rel. duty - 1200 c/h for control motor 3 kW
in high-speed operation: short time duty
S2 – 5 min
mounting flange and drive shaft, type D to DIN 3210 (free end shaft with featherkey)
temperature range –20 to +60°C
self-locking
