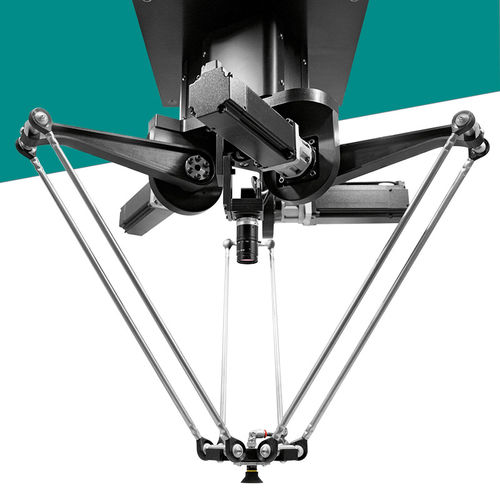

Delta robot SIAX D3 5004-axis3-axis5-axis
Add to favorites
Compare this product
Characteristics
- Type
- delta
- Number of axes
- 4-axis, 3-axis, 5-axis
- Function
- for wafer handling, for tool manipulation, packaging, pick-and-place
- Mounting
- ceiling-mounted
- Application domain
- for the food industry, for the electronics industry, for the pharmaceutical industry, for medical applications, for the cosmetics industry, for the beverage industry, for the plastics industry, for small parts
- Protection level
- IP54, IP65, IP69K
- Other characteristics
- compact, high-speed, high-precision, self-learning, vision system
- Payload
2 kg
(4.409 lb)- Reach
500 mm
(19.69 in)- Repeatability
0.1 mm
(0.0039 in)- Operating temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)- Weight
25 kg
(55.1 lb)
Description
Power supply: 220V single phase.
Installed power: from 1,2 to 1,5 KW.
Humidity: max 95%.
Speed: up to 120 cycles/minute.
Degrees of freedom: 3+2 (wrist + tilt).
