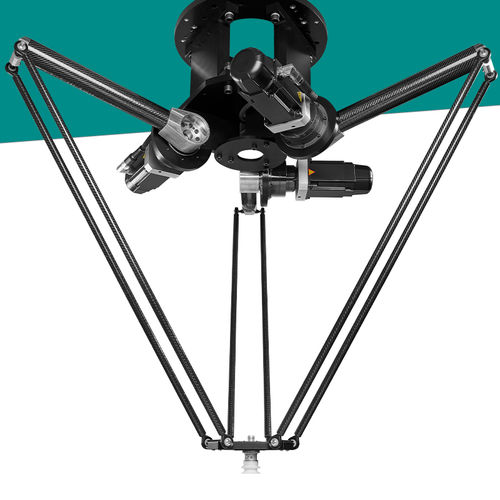

Delta robot SIAX D3 16004-axis3-axis5-axis
Add to favorites
Compare this product
Characteristics
- Type
- delta
- Number of axes
- 4-axis, 3-axis, 5-axis
- Function
- handling, packaging, pick-and-place
- Mounting
- ceiling-mounted
- Application domain
- for the food industry, for the electronics industry, for the pharmaceutical industry, for medical applications, for the cosmetics industry, for the beverage industry, for the plastics industry, for small parts
- Protection level
- IP54, IP65, IP69K
- Other characteristics
- compact, high-speed, high-precision, self-learning, vision system
- Payload
5 kg
(11.023 lb)- Reach
1,600 mm
(62.99 in)- Repeatability
0.1 mm
(0.0039 in)- Operating temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)- Weight
80 kg
(176.4 lb)
Description
Power supply: 380V.
Installed power: 6.6 to 7.6 KW.
Humidity: max 95%.
Speed: up to 150 cycles/minute.
Degrees of freedom: 3+1 (wrist).
