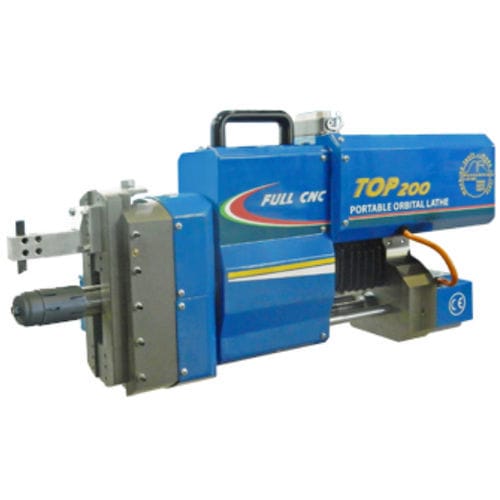

CNC lathe Top 200horizontal2-axisorbital
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- orbital, portable
- Performance
- precision
- Diameter
Max.: 200 mm
(7.87 in)Min.: 0 mm
(0 in)
Description
Created to carry out internal and external surface operations and facing operations on the ends of non-rotating fixed tubular bodies, unable to be operated by the conventional machine tools.
Suitable for the all the severals, complex and precise lathing operations:
Rectilinear and/or curved profile interpolations.
Multilevel grooves.
Standard and/or tapered threading.
Profile facing.
TOP 200
Series Top
Radial stroke (X): 50 mm (1.97")
Axial stroke (Z): 100 mm (3.94")
Machining diameter: 200 mm (7.87")
