Ball valve leverfor controlfor potable water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Media
- for potable water
- Body
- brass
- DN
Max.: 2 in
Min.: 0.25 in
- Pressure
10 bar
(145 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -10 °C
(14 °F)
Description

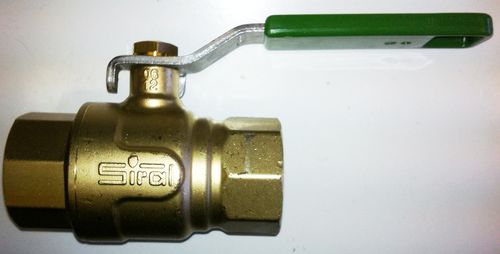

The brass ball valve VP3000 is designed for drinkable water with DVGW approval. The hot forged brass ball valve series is used to control the flow of drinking water with DVGW approval according to EN13828 - DVGW-W 570. The full flow according to the size is ranging from 1/4" to 2". The pressure rating ratio is PN10 and the temperature rating is -20°C/+90°C.
