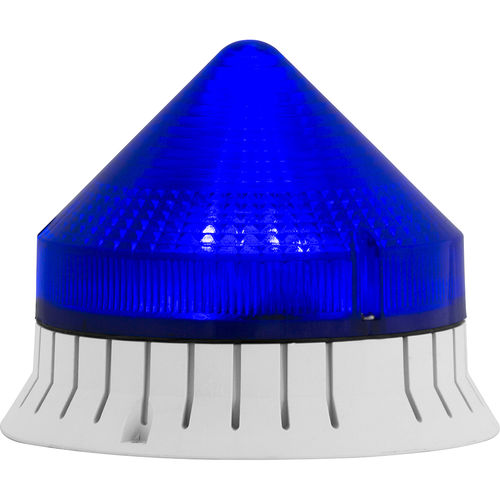

Luminous device, 120mm diameter, engineered for industrial applications on machinery.
Available with different luminous sources:
LED with SMD LED technology
X flashing light with Xenon discharge tube
The device is also available with integrated acoustic signaling (ACOUSTIC versions).
KEY CHARACTERISTICS
LIGHT EFFECTS
CTL 1200 LED: STEADY/FLASHING LIGHT
VOLTAGES
CTL 1200 LED:
12/24V ACDC +/-10% 320mA
90/240V AC +/-10% 74mA
PROTECTION GRADE
IP54
OPERATING TEMPERATURE
-30/+50 °C
MECHANICAL FEATURES
ABS base, polycarbonate dome.
Screw mounting (screws not included)
OPTICAL FEATURES
CTL 1200 LED (steady/flashing light) with SMD LED technology, triple-flash 3F
CD max. 27 (24V)
