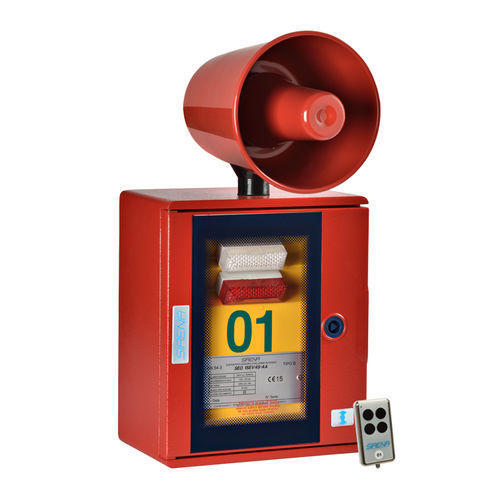

Siren without beacon SEO 1 SEV/4S.AA

IP65powerful

High power evacuation warning siren for industrial areas APPROVAL NUMBER TRADITIONAL SYSTEM: 1328-CPR-0473 DEVICE STRUCTURE • Transparent FRONT with LED light • 50W steel magneto-dynamic EXPONENTIAL HORN • self-diagnosis: an automatic control test is carried out every 24 hours relating to absence of mains power supply, low battery charge, interruption of the magneto-dynamic unit. Three LEDs positioned on the PCB indicate the possible anomalies. TRADITIONAL SYSTEM A relay with a C-NC-NO contact (normally open) allows remote localization of fault signal FUNCTION 4 levels of alarm (warning, evacuation, all clear, fire alarm) The sound relating to the fire alarm is activated by means of polarity inversion by the Fire Alarm Control Box, according to UNI EN 54-3 Norm. LEVEL 1 | WARNING | AMBER LEVEL 2 | EVACUATION | RED LEVEL 3 | ALL CLEAR | GREEN LEVEL 4 | FIRE ALARM | LUMINOUS PANEL A dip-switch allows four sound options to be selected from a total of eight to be combined to the priorities established.
