Steady traffic light SMFR 6.3 LD 8Q

blinkingLED24 Vdc

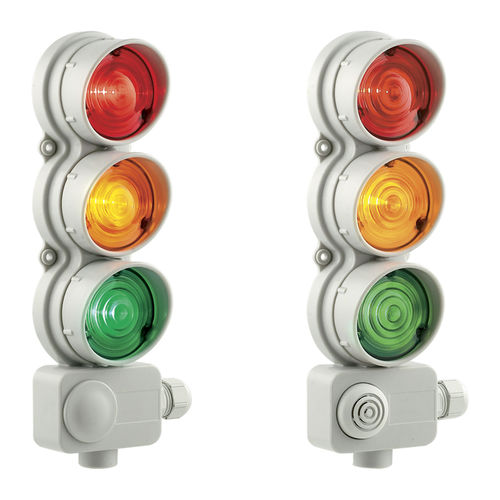

LED industrial traffic light engineered for signalization in different scenarios like building technology, mechanical engineering and access control systems. SMFR 6.3 LD 8Q traffic lights benefit from steady light LED technology (flashing light version on request). Version with integrated acoustic signalization SMFR 6.3 LD 8Q A also available. Voltages SMFR 6.3 LD 8Q SMFR 6.3 LD 8Q A 12V DCAC +/-10% 30mA 12V DCAC +/-10% 40mA 24V DCAC +/-10% 30mA 24V DCAC +/-10% 40mA 48V DCAC +/-10% 30mA 48V DCAC +/-10% 40mA 110V AC +/-10% 15mA 110V AC +/-10% 20mA 240V AC +/-10% 20mA 240V AC +/-10% 30mA * Power consumption data refer to one light source only Mechanical features ABS body and PC domes. PVC dome gaskets and Forprene rear light covers. Equipped with M20 cable gland. Optical features Optical group made up of 8 square LEDS with high optical performance. Domes engineered to intensify the steady light beam (flashing light available on request). Acoustic features SMFR 6.3 LD 8Q A: acoustic buzzer. Intermittent sound F/m 110. Frequency: 4000Hz+/-300
