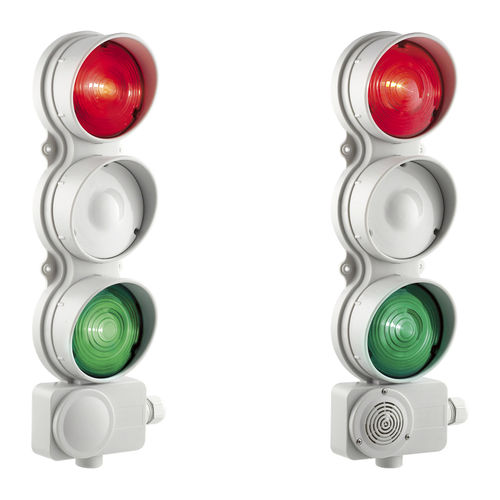

Steady traffic light SMFR 9.2 LD 16Q

blinkingLED

LED industrial traffic light engineered for signalization in different scenarios like building technology, mechanical engineering and access control systems. SMFR 9.2 LD 8Q traffic lights benefit from steady light LED technology (flashing light version on request). Version with integrated acoustic signalization SMFR 9.2 LD 8Q A also available. Voltages SMFR 9.2 LD 16Q SMFR 9.2 LD 16Q A 12V DC +/-10% 185mA 12V DC +/-10% 185mA 12V AC +/-10% 145mA 12V AC +/-10% 145mA 24V DC +/-10% 110mA 24V DC +/-10% 110mA 24V AC +/-10% 155mA 24V AC +/-10% 155mA 48V DC +/-10% 40mA 48V AC +/-10% 105mA 48V AC +/-10% 105mA 110V AC +/-10% 20mA 110V AC +/-10% 20mA 240V AC +/-10% 20mA 240V AC +/-10% 20mA * Power consumption data refer to one light source only Mechanical features ABS body and PC domes. PVC dome gaskets and Forprene rear light covers. Equipped with M20 cable gland. Optical features Optical group made up of 16 square LEDS with high optical performance. Domes engineered to intensify the steady light beam (flashing light available on request). Acoustic features SMFR 9.2 LD 8Q A: acoustic buzzer. Continuous sound. Frequency: 650/50Hz
