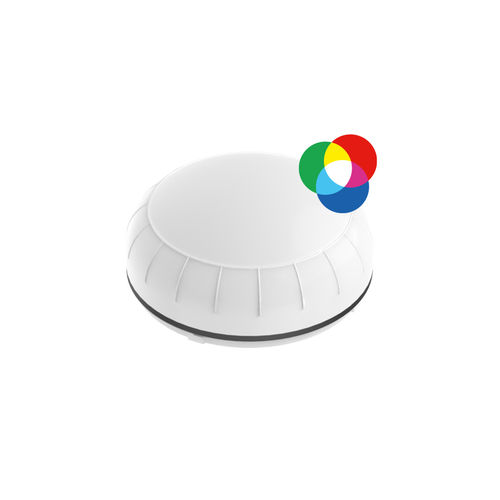

RGB LED devices with directional arrow.
MECHANICAL FEATURES
Clear opaline polycarbonate dome with high impact resistance – IK08
Protection grade: IP66, UL TYPE 4X certification (IP69K with safety collar)
Operating temperature: -40°C / +55°C
OPTICAL FEATURES
Several light effects (steady light, single flash 1F, triple 3F, strobe effect 5F, random effect, with adjustable luminous intensity on 3 levels,
through button.
VOLTAGES According to the installed base.
It is necessary to match the devices to a Tline base.
FEATURES
Operating Cycle -
Continuous
Self-extinguishing -
Yes
IP Grade -
66
Electrical security class -
Class 2
Minimum Temperature -
-40°C
Maximum Temperature -
+55°C
Levels of alarm -
3
Voltage -
According to the installed base
Operating Cycle -
Continuous
Electrical security class -
Class 2
Lamp holder type -
LED SMD
Dome Color -
White, Clear
Self-extinguishing -
Yes
IP Grade -
66
Base type -
Modular MLINE
Light Source -
LED
Dome Color -
White, Clear
Flashes per Minute FPM -
120±10, RANDOM
Cycles per minute CPM -
2F 36±10, 4F 60±10
Flash Type -
1F, 3F, 5F, Random
Light effects -
Blinking, Random, Steady, Strobe
