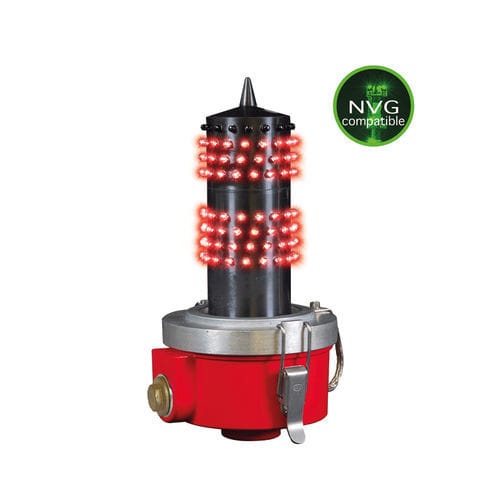

Aircraft obstruction light NAVILITE IR FAA L-810

LEDlow-intensitywarning

Low Intensity Aircraft Warning Light engineered according to ICAO Low Intensity Type B and FAA L-810 regulations. NAVILITE IR FAA L-810 is provided with a red steady light covering 360° horizontal beam. It includes 2 “de-coupled” visible and infrared circuits: 64 red leds wired in 16 independent circuits of 4 leds each + 64 infrared leds wired in 16 independent circuits. NVG compliant as per FAA (25mW/sr @ 850nm). This solution makes the use of warning lights with back-up circuit superfluous. The LED technology guarantees a long product life estimated in over 10 years, as well as low consumption (1/10 when compared to incandescent bulbs). The base is provided with surge protection and alarm dry contact. Voltages: 48V DC, 120/240V AC +/-10% 50/60Hz Mechanical features Dielectric polyurethane resin body Aluminum NPT base Optical features Red steady light Luminous intensity >35Cd Horizontal beam spread 360° Vertical beam spread >10° Fixing 2x 3/4″ NPT threaded holes Technical features AC/DC converter with current regulation (only for 50586 version). Surge protection 10kA in 8/20μs. Alarm dry contact for remote signalization SYSTEM DESIGN SUPPORT Our Team of experts can assist designers and installers with professional support in terms of norms and system configuration.
