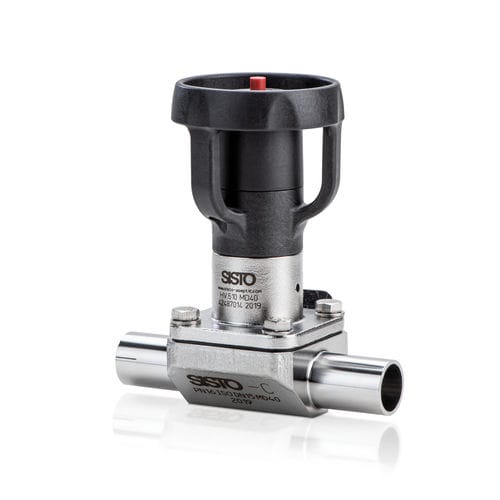

2/2-way valve SISTO-Cdiaphragmwith handwheelshut-off
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel
- Function
- shut-off
- Media
- for hot water, for pure water, for oil, for chemical products, for gas, for steam
- Body
- soft-seat, weld, stainless steel
- Applications
- for the chemical industry, for the food industry, for process applications, beverage, for pharmaceutical applications, for hygienic applications, high-purity, tank bottom
- Number of channels
- 2/2-way
- Fluid specification
- for aggressive media, for corrosive fluids, for hazardous fluids, for toxic fluids
- Other characteristics
- corrosion-resistant, ANSI, chemical-resistant, with butt weld ends, for high-purity fluids, aseptic, with security, for compressible fluids, rising stem, with positioner, with connection, sterile, zero-bleed, for aggressive media, for corrosive fluids, for flammable liquids, for hydrogen, for dangerous fluids, variable-flow
- DN
Max.: 200 mm
(7.874 in)Min.: 6 mm
(0.236 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 160 °C
(320 °F)Min.: -20 °C
(-4 °F)
Description
SISTO-C
● Soft-seated shut-off valve
● Unique design with enclosed diaphragm
● Diaphragm with spiral support starting with size MD65
● With manual or pneumatic actuator
● Shut-off and sealing to atmosphere by diaphragm, therefore two components in contact with the fluid handled only:
body and diaphragm
● Body designs: 2-way valve body, T-pattern, tank or multi-port valves
● Butt weld ends or clamped connection
● Drain angle indicated by laser marking
● Body materials: forged stainless steel and other alloy materials
● Diaphragm materials: EPDM, TFM/EPDM bonded, TFM/EPDM 2-piece
● Available nominal diameters: DN 6 – DN 200
● Operating temperature: – 20°C to + 160°C
● Permissible operating pressure: vacuum up to 16 barg/ optional 20 barg
Benefits:
● Suitable for applications up to a line pressure of 16 barg
● Increased operating reliability
● Self-draining
● No dead volume
● No contamination of fluid handled
● Suitable for CIP/SIP
● Maintenance-free
