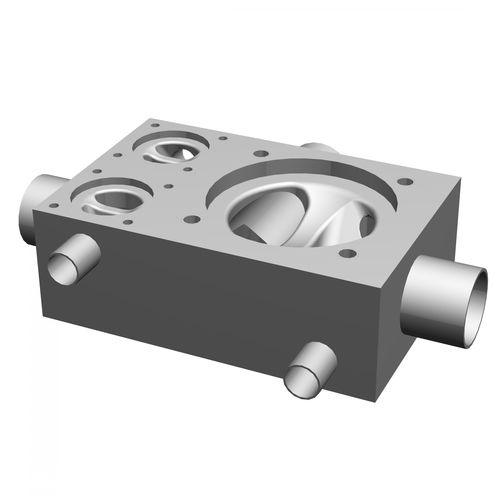

Diaphragm valve SISTO-CM601

shut-offforged steelhigh-purity

SISTO-CM601 ● Multi-port valve ● Unique design with enclosed diaphragm ● Diaphragm with spiral support starting with size MD65 ● With manual or pneumatic actuator ● Shut-off and sealing to atmosphere by diaphragm, therefore two components in contact with the fluid handled only: body and diaphragm ● Butt weld ends or clamped connection ● Body materials: forged stainless steel and other alloy materials ● Diaphragm materials: EPDM, TFM/EPDM bonded, TFM/EPDM 2-piece ● Available nominal diameters: DN6–DN100 ● Operating temperature: – 20°C to + 160°C ● Permissible operating pressure: vacuum up to 16 barg/ optional 20 barg Benefits: ● Suitable for applications up to a line pressure of 16 barg ● Increased operating reliability ● Self-draining ● No dead volume ● No contamination of fluid handled ● Suitable for CIP/SIP ● Maintenance-free ●Compact, space-saving design
