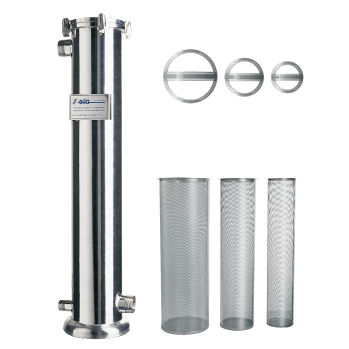

Cartridge filter housing GE/CS series

for waterstainless steel

The basket filters (GE/CS models) are constructed in stainless steel AISI 304 or AISI 316, with internal removable basket with 800 µm. filtering degree. Three different dimensions ensure a range of flow rate from 30 to 90 m3/h. This type of containers is generally used as pre-filtration in the industrial field to filter process waters. CARTRIDGES APPLIED: Basket cartidge AISI 316 L - 800µm STANDARD FLOW-RATES: from 30 to 90 m3/h MANIFOLD MATERIAL: int/ext polished stainless steel AISI 304 MAX. PRESSURE: 6 bar ON REQUEST: - AISI 316 L manifold - equipment for higher flow-rates - personalized IN-OUT connections - disposition for treatment of hot water
