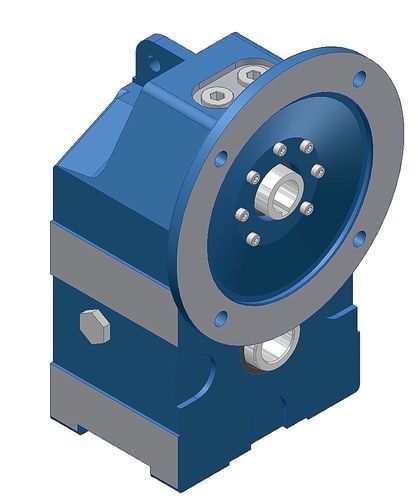

Helical gear gear reducer PD series
parallel-shaft2 - 5 kNmshaft-mounted

helical gear gear reducer
helical gear gear reducer
helical gear gear reducer
Add to favorites
Compare this product


Characteristics

Type
helical gear
Shaft orientation
parallel-shaft
Torque
2 - 5 kNm
Mounting
shaft-mounted
Performance
for heavy loads
Applications
for heavy-duty applications
Power

83 kW
(112.85 hp)

Description

High Versatility 5 sizes that offer a wide range of possible mounting positions. High Performances Max input power 83 kW. Max torque 4015 Nm. Ratios up to 118/1. High Reliability Sturdy cast iron housing for heavy duty applications. High resistant gears made in top quality steel. Largely proportioned bearings. High quality sealing for improved leaking prevention. Optional Accessories Output flanges Single/double solid output shaft Torque arm Backstop device
