Worm gear reducer U series
right angle500 - 1000 Nmhigh-performance

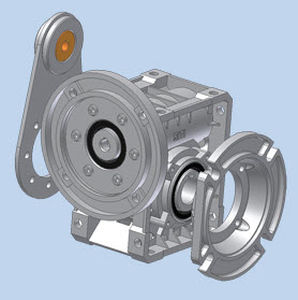

Worm gear reducer - U series - Siti - right angle / 500 - 1000 Nm / high-performance
Worm gear reducer - U series - Siti - right angle / 500 - 1000 Nm / high-performance
Worm gear reducer - U series - Siti - right angle / 500 - 1000 Nm / high-performance - image - 2
Worm gear reducer - U series - Siti - right angle / 500 - 1000 Nm / high-performance - image - 3
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Torque
500 - 1000 Nm
Performance
high-performance
Applications
for heavy-duty applications
Rotational speed

3,360 rpm
(21,111.5 rad.min-1)

Power

17.7 kW
(24.07 hp)

Description

High Modularity Worm gearboxes suitable for the modular assembling of flanges and torque arm. High Versatility 7 sizes with wide range of different mounting positions. High Performances Max input power 17.7 kW. Max torque 885 Nm. Ratios up to 100/1. High Reliability Housing built in pressure die casting aluminium, designed in order to guarantee lightness, strength and stiffness. In the size 30, housing in Nylon PA 6,6 GF 30 for aggressive environments. ZI teeth profile on worm and wormwheels for a silent working without vibrations. Optional Accessories Double extension input shaft Single/double solid output shaft Torque arm
